LC185EXN-SCA1 (Alias: LC185EXN (SC)(A1)) is a 18.5 inch diagonal a-Si TFT-LCD display screen product from LG Display, with a built-in WLED backlight, With LED Driver, without touch screen. On the basis of latest version datasheet Ver1.0 which was released out on 1 22 2010, LC185EXN-SCA1 supports display 1366(RGB)×768 (WXGA) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 409.8(W)×230.4(H) mm, outline size of 430.4(W)×254.6(H)×14.9(D) mm, viewing area size of 413.4(W)×234.0(H) mm, with surface treament of Antiglare (Haze 13%), Hard coating (3H), net weight of 1.26/1.35Kgs (Typ./Max.). As a S-IPS, Normally Black, Transmissive LCM product, LC185EXN-SCA1 can provides 300 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Min.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 9 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit + Dithering gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 68% (CIE1931). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 30K hours, With LED Driver. LC185EXN-SCA1 utilizes LVDS (1 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.
Mobile:86-13632883055
Email: thea_zyntech@163.com
QQ:2369472056
WeChat: 136 3288 3055
Skype :Thea.xu
|
|

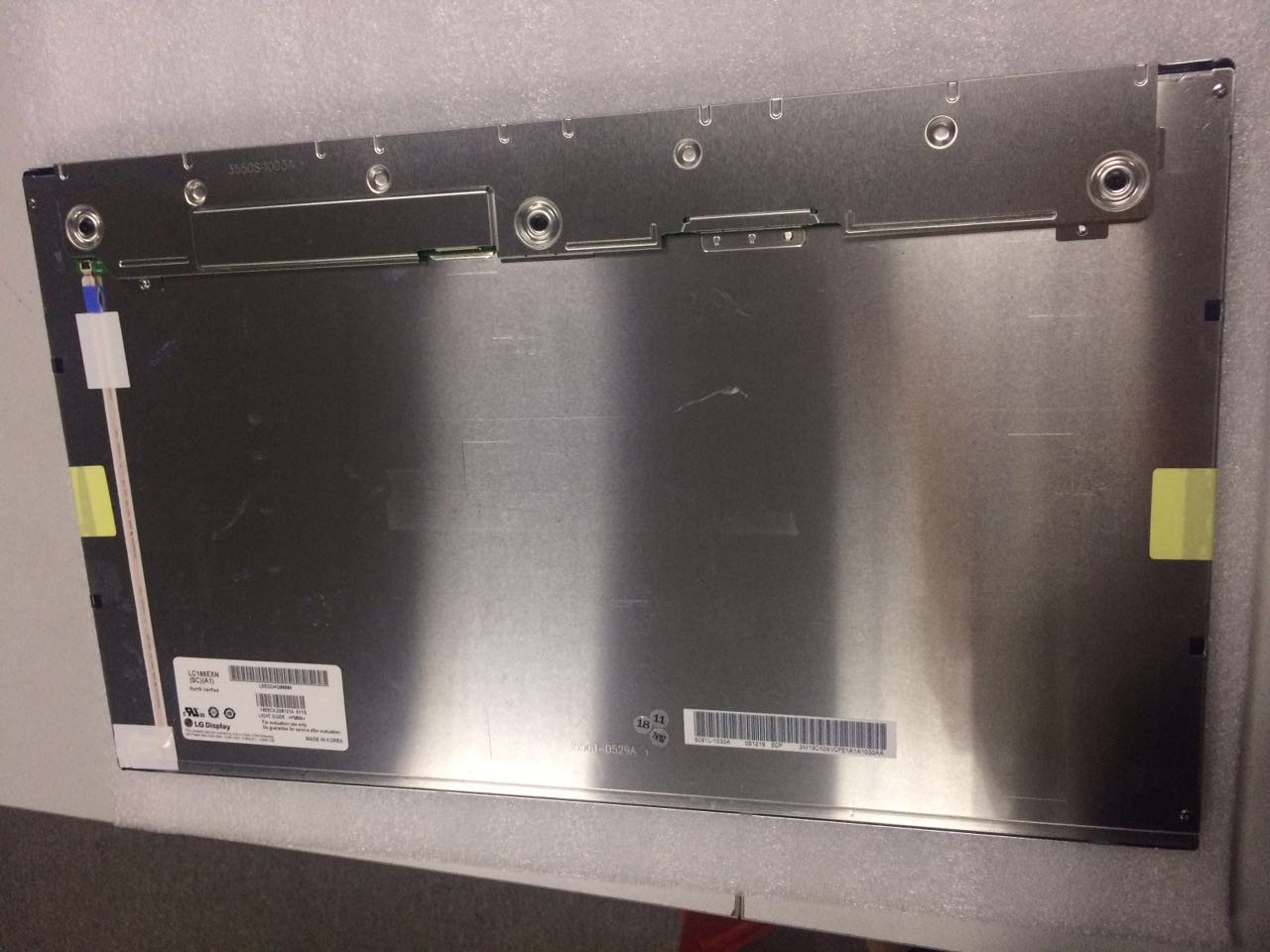

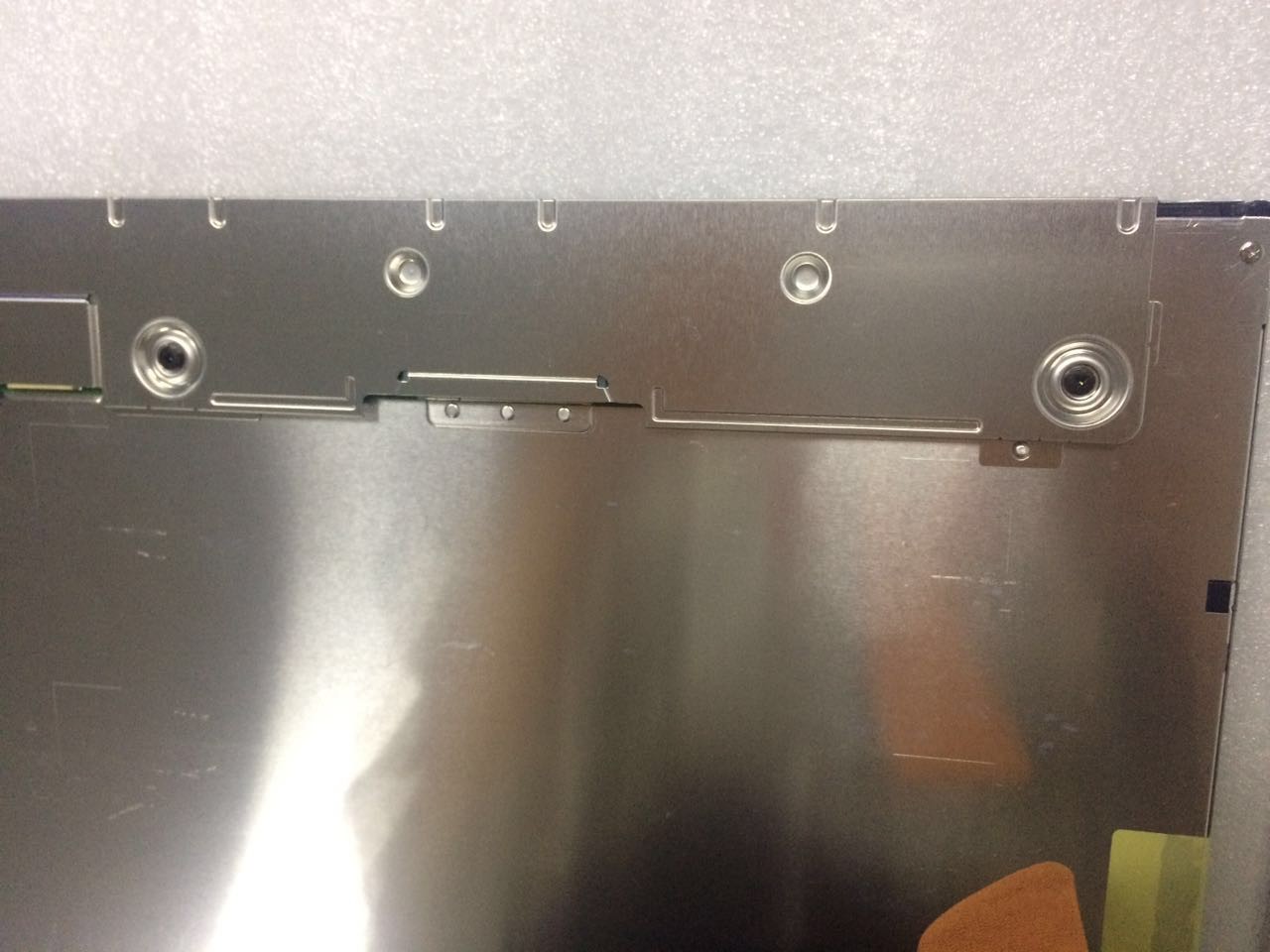

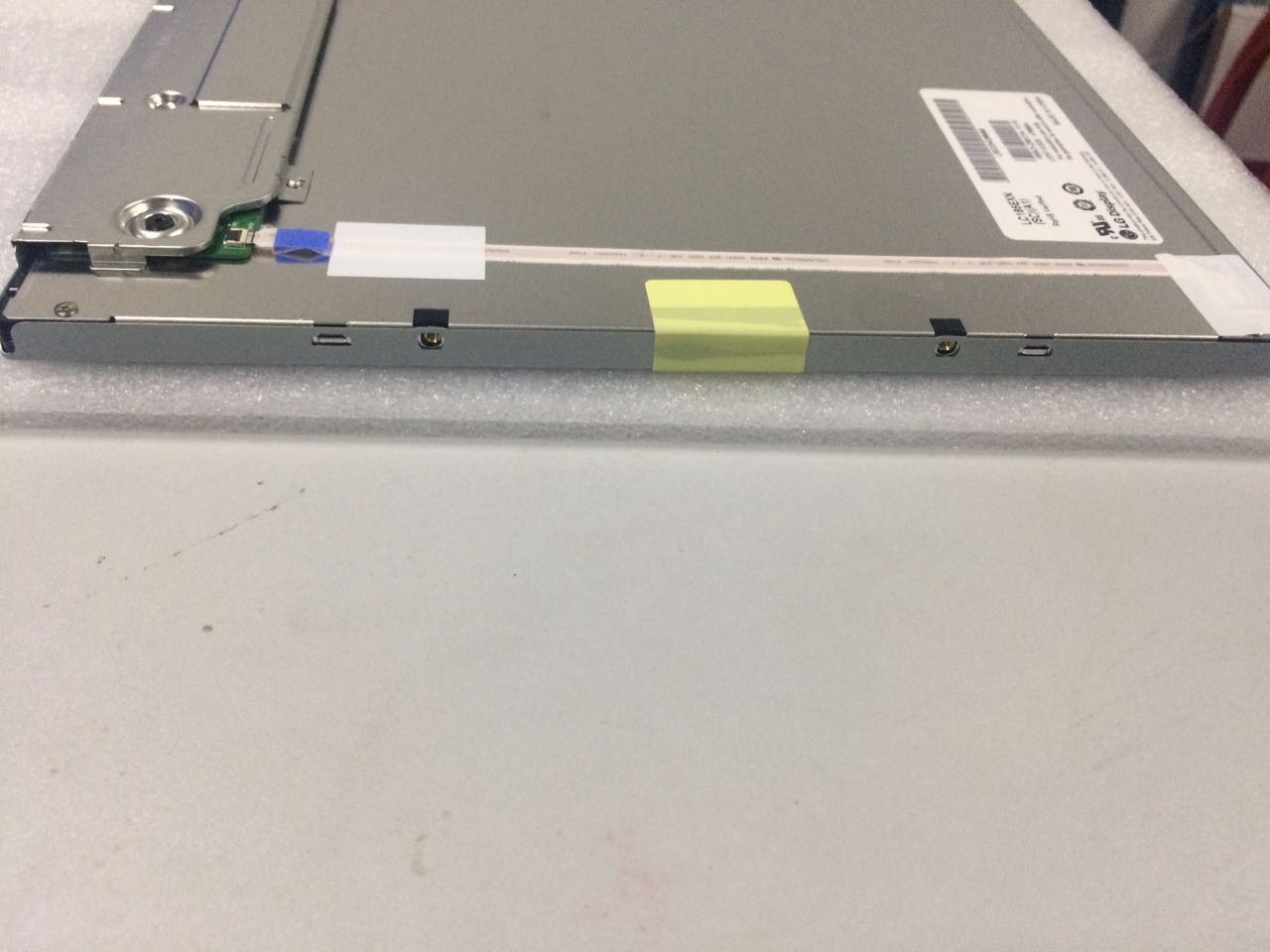

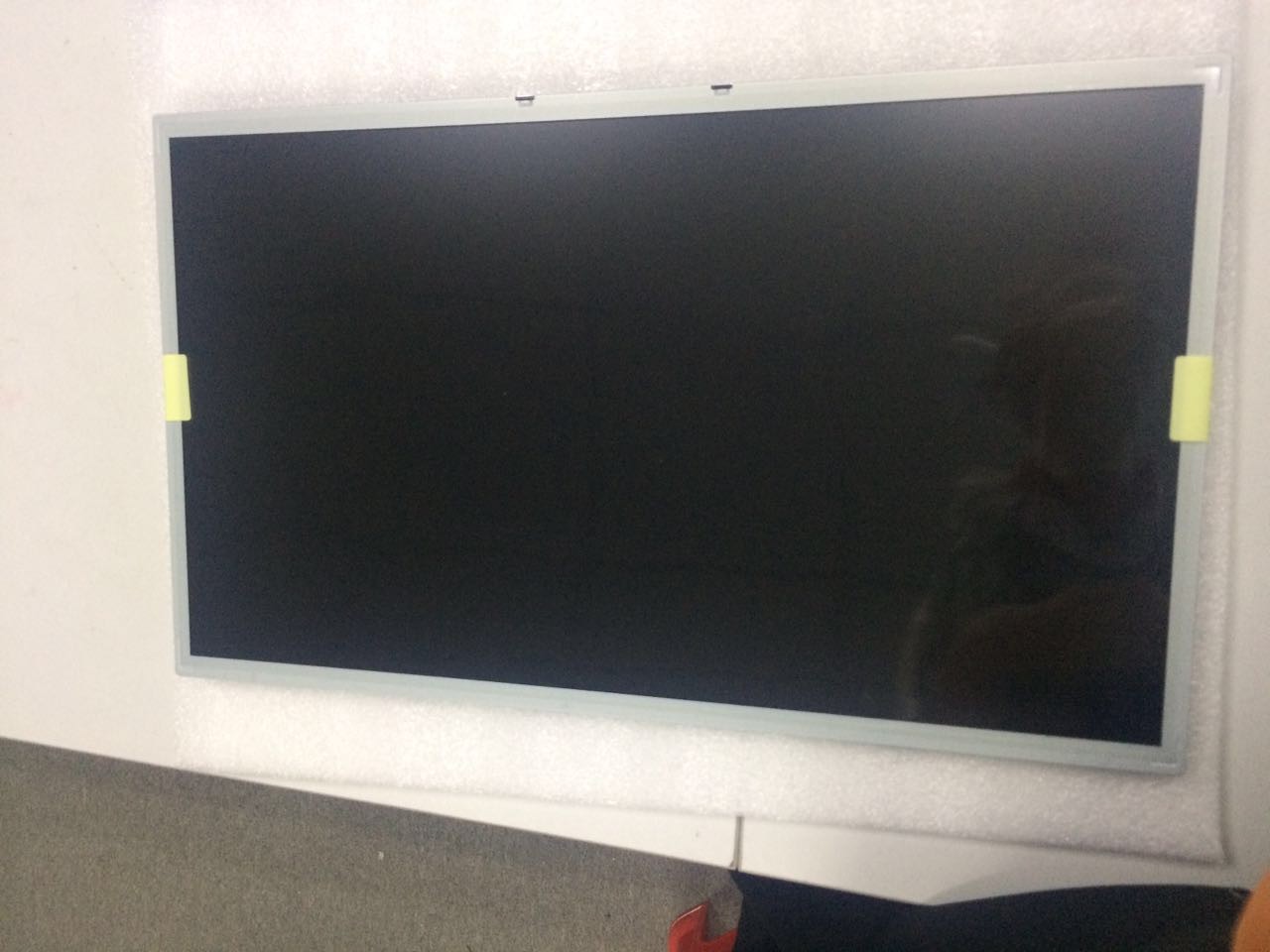

100% pruebas original a + grado LC185EXN-SCA1 18.5 "pulgadas LCD panel pantalla 12 meses de garantía Images
|
